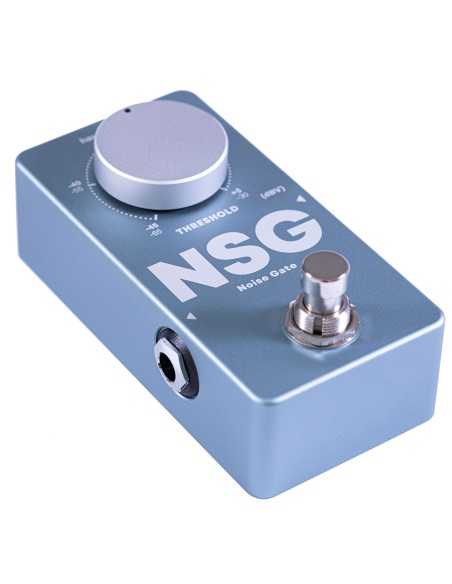

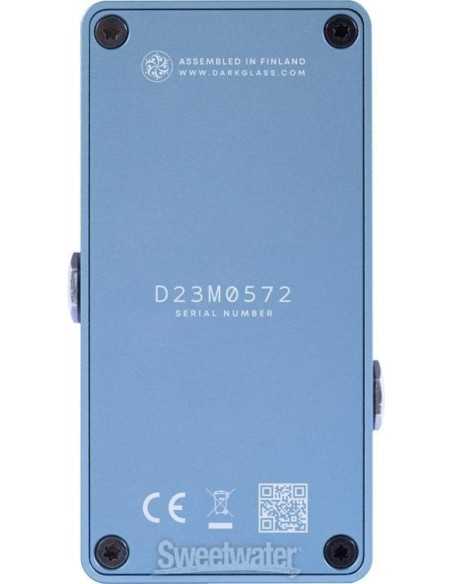

Darkglass NSG Noise Gate

Front features

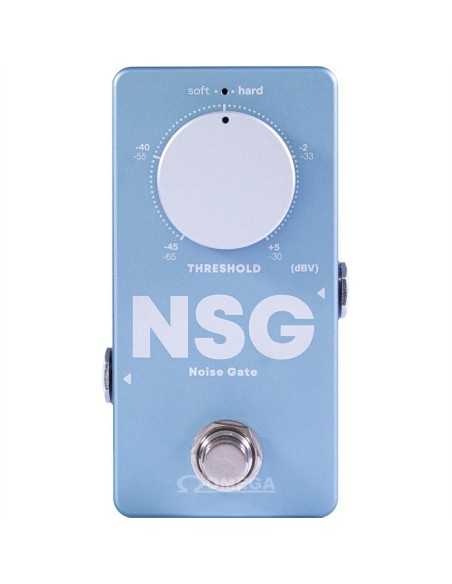

Threshold Use this push knob to control the threshold of the noise gate. Press the knob to switch between the “Soft” mode (Blue LED color) for softer gain reduction and “Hard” (Red LED color) for the more aggressive gate operation.

Threshold range From -65 dBV to -30 dBV in “Soft” mode. From -45 dBV to +5dBV in “Hard” mode.

Dimensions Width: 50 mm /2″ Length: 36,5 mm/ 1 ½″ Height: 100 mm / 4″ Weight: 205 g / 0,45 lb

Technical Specifications

Input Impedance: 1 MΩ

Output Impedance: 100 kΩ

Current Consumption: ~60 mA

Voltage 9V DC (Center Negative)

Warning The NSG Noise Gate has a current draw of 60 mA. Only use a regulated 9V DC adapter with a center-negative plug. Unregulated power supplies and/or higher voltages may result in suboptimal noise performance and even damage your unit, voiding the warranty.
