Output Jacks & Jackplates
Switchcraft 1/4 inch mono #11 input jack. Includes nut and washer. Requires 3/8"-diameter mounting hole; 3/8 x 32 threaded portion is 1/4 inch long. Industry standard in quality and design. Essential component in all electric guitar builds.
Long Threaded Barrel Input Jack, Stereo, Black, Switchcraft, with Nut and Washer. Accepts 1/4 in. plug, and can be wired mono or stereo. Half inch diameter mounting hole,needed and at least 7/16 inch wood thickness are required for mounting. Overall length 2 inches. Short post is hot, medium post is for battery, and larger outermost post is for ground.
Long Threaded Barrel Input Jack, Stereo, Switchcraft, with Nut and Washer. Accepts 1/4" plug, and can be wired mono or stereo. 1/2"-diameter mounting hole, needed and at least 7/16" wood thickness are required for mounting. Overall length 2". Chrome. Short post is hot, medium post is for battery, and large post is for ground.

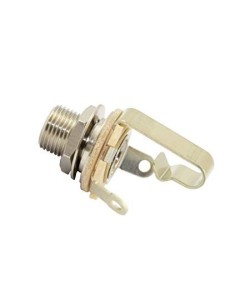

1/4" Input jack, Switchcraft #11L, with 3/8" (9.52mm) long threaded bushing, with nut and washer.
Gotoh Jackplate for Edge Mount - Football shaped, Chrome, with screws. Jack hole diameter is 9.5mm. The mounting screw holes spacing 36.5mm. The jackplate has a slight curve to match the bodys curved sides.
Rectangular jack plate with slight curve. Hole diameter 3/8" (9.5mm). Mounting screw holes spacing - 1-5/64" (27.5mm) x 49/64" (19.5mm).
Switchcraft #151 1/4" Mono 2 Conductor Thick Panel Mount Jack w/Cable Clamp. Nickel Finish, Nut + Washer. Since decades the original stock part of many US made guitar classics.Made in USA
Jackplate for Les Paul, Chrome plated, with Screws, Jack hole diameter 9.5mm with the mounting screw holes spacing 25.4mm. The jackplate has a slight curve to match the bodys curved sides.
Jackplate for Les Paul, Gold, Metal, with Screws, Jack hole diameter 9.5mm with the mounting screw holes spacing 25.4mm. The jackplate has a slight curve to match the bodys curved sides.
Jackplate for Les Paul, Black, Metal, with Screws, Jack hole diameter 9.5mm with the mounting screw holes spacing 25.4mm. The jackplate has a slight curve to match the bodys curved sides.
Bell shaped truss rod cover to fit Gibson, black with white trim.
Neck Plate, 4 Hole, for Guitar or Bass, Chrome. The plate is 2 inch x 2-1/2 inch. Screw holes are spaced 1-1/2 inch x 2 inch
Switchcraft End Pin jack, Stereo, Nickel, Can be tightened from outside the guitar for easier installation. Accepts a standard 1/4 inch plug. Can be wired for a mono or stereo. 15/32 in. diameter, for 1/2 in. mounting hole. 3 terminals + ground
Back Plate & Switch Cover for Les Paul® Black 1-ply
Rhythm/Treble Ring for Toggle Switch, Black
6.3 mm / 1/4 TS (mono) jack socket open suitable for mounting with jackplate/pickguard mounting diameter 9 mm M9 x 5 mm threads black incl. 12 mm nut and washer
1/4 Input Jack, Stereo, Switchcraft #12B, with nut and washer. A stereo input jack is used for stereo wiring, or to turn on/off onboard active systems when the plug is inserted. Requires 3/8"-diameter mounting hole; 3/8 x 32 threaded portion is 1/4" long.
Jackplate for Stratocaster, Chrome, with Screws
Jackplate for Stratocaster Black, with Screws
Gotoh Jackplate for Edge Mount - Football shaped, Black, with screws. Jack hole diameter is 9.5mm. The mounting screw holes spacing 36.5mm. The jackplate has a slight curve to match the bodys curved sides.
Cup Jackplate for Telecaster Chrome. Includes retainer clip. 7/8 inch-diameter mounting hole required.
Jackplate for Edge Mount - Football shaped, Nickel, with screws. Jack hole diameter is 3/8" (9.5mm). The mounting screw holes spacing - 1-7/16" (36.5mm). The jackplate has a slight curve to match the body's curved sides.
