> Amps > Guitar amp heads > EVH 5150III 50W EL34 Head

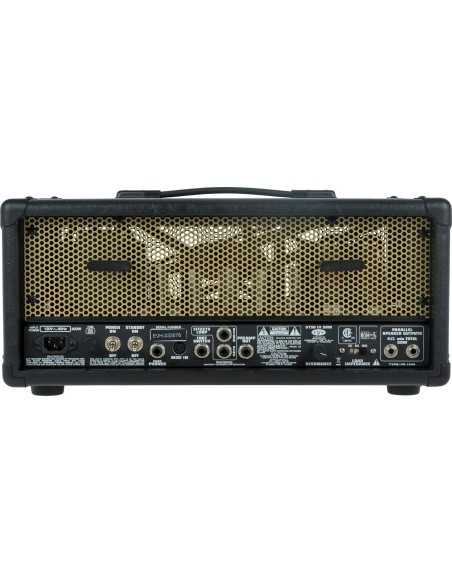

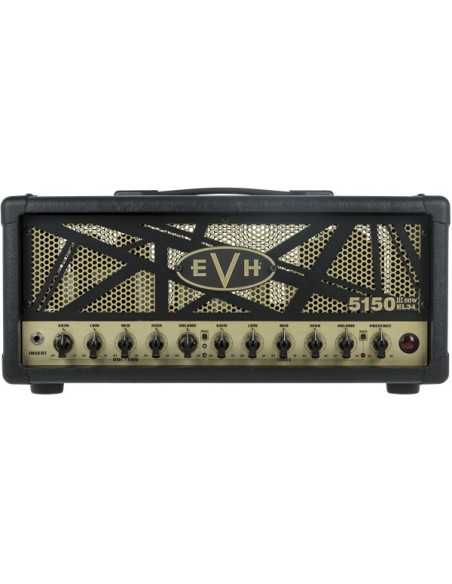

EVH 5150III 50W EL34 Guitar Amplifier Head EUR View larger

EVH 5150III 50W EL34 Head

2253066000

EVH

New

Independent volume and gain control for all three channels has arrived with the 5150III® 50W EL34 head. Experience total control, along with the same lethal looks and ferocious EL34 tone of the 100-Watt head.

The EL34 power tubes deliver signature harmonic overtones, with more dynamic compression and saturation that evoke a more modern “British” sound, all with the sustain and versatility expected from EVH® 5150III® amps.

More details

In Stock

1 399,00 € tax incl.

Data sheet

Tube amplifierYes
Output50W
Channels3
MIDIYes

More info

Channel one boasts a more sparkling and compressed clean tone, while channels two and three possess a slightly darker and compressed tone with even more saturation than before. Channels one and two each have dual concentric gain/volume controls, with shared EQ (low, mid, high), while channel 3 has an independent EQ. Other features include a rear-panel resonance control that tailors low-frequency response for all channels and a global presence control.

Wrapped in an elegant gold and black EVH motif, the EL34 50-watt head also is equipped with an effects loop, headphone jack, pre-amp out and midi-in.


Electronics

  • CONTROLS - Channel 1: Independent Gain and Volume w/ Shared Low, Mid and High; Channel 2: Independent Gain and Volume w/ Shared Low, Mid and High; Channel 3: Independent Gain, Volume, Low, Mid and High EQ; Also Global Presence and Resonance
  • CONTROL PANEL - Channel 1: Independent Gain and Volume w/ Shared Low, Mid and High; Channel 2: Independent Gain and Volume w/ Shared Low, Mid and High; Channel 3: Independent Gain, Volume, Low, Mid and High EQ; Also Global Presence and Resonance
  • INPUTS - One - 1/4", MIDI (rear)
  • HEADPHONE JACK - 1/4" Stereo
  • LINE OUT - One - 1/4"
  • CHANNELS - Three - (Clean, Crunch and Lead)
  • EFFECTS LOOP - 1/4" (Send/Return)
  • CONNECTIVITY - MIDI
  • CONNECTION TYPE - 1/4"
  • VOLTAGE - 230V EUR
  • WATTAGE - 50 Watts


Hardware

  • CONTROL KNOBS - Black Chicken-Head Style Pointer
  • AMPLIFIER COVERING - Black Textured Vinyl
  • CABINET MATERIAL - White Birch
  • GRILLE CLOTH - NA
  • HANDLE - Molded Plastic Strap with Black Powder Coated Caps
  • SPEAKER JACK - Two - 1/4" Parallel
  • FRONT PANEL - Gold Anodized


Speakers

  • TOTAL IMPEDANCE - 4, 8, or 16 ohms


Tubes

  • POWER TUBES - 2 x JJ EL34
  • PREAMP TUBES - 7 x JJ ECC83S (12AX7)
  • RECTIFIER - Solid State


Accessories

  • FOOTSWITCH - 4-Button Footswitch Included


Measurements

  • DIMENSIONS - 18.00x18.00x24.00 IN
  • SHIPPING WEIGHT - 19.00 LB
  • PRODUCT DEPTH - 12" (30.5 cm)
  • PRODUCT HEIGHT - 8.5" (21.6 cm)
  • PRODUCT WIDTH - 20" (50.8 cm)
  • POWER TUBES - 2 x JJ EL34
  • SHIPPING LENGTH - 24.00 IN
  • SHIPPING HEIGHT - 18.00 IN
  • SHIPPING WIDTH - 18.00 IN
