Voodoo Lab Pedal Power 4x4 View larger

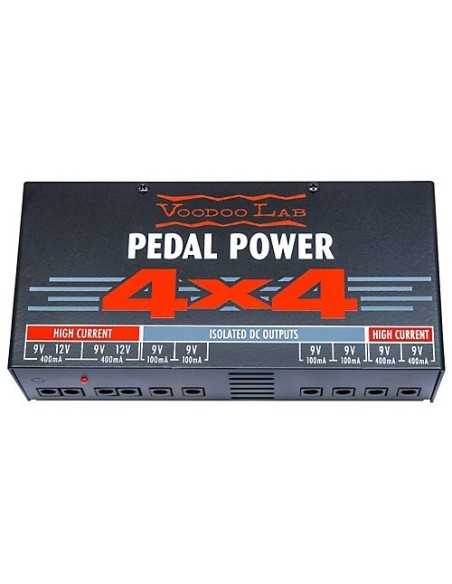

Voodoo Lab Pedal Power 4x4


Voodoo Lab


Four 9V isolated high-current 400mA output sections (2 with 12V option) power Strymon, Eventide, Line 6 (excludes M9/M13), Boss Twin, TC Electronic Nova, Moog and more, Four 9V isolated 100mA output sections, All outputs compatible with 9V battery operated pedals, Linear regulation and toroidal transformer for lowest possible noise, easily fits small to large pedalboards, Includes cables and detachable AC line cord, Engineered and handmade in the USA

More details

1-2 weeks delivery time

232,00 €

Data sheet

Isolated Outputs8

More info



5.5x2.1mm barrel connectors center negative
Short circuit protected

Two 9V or 12VDC - 400mA
Two 9VDC - 400mA
Four 9VDC - 100mA

Included DC Power cables

5.5x2.1mm right angle barrel connectors (6)
5.5x2.1mm straight barrel connectors (2)
5.5x2.5mm right angle "red" barrel (1)
3.5mm right angle mini plug (1)
9V battery snap (1)


7" wide x 3.4" deep x 1.8" tall (178 x 86 x 46 mm)
Weight: 2 lbs. (0.9 kg)


Toroidal power transformer
Temperature controlled variable speed fan
