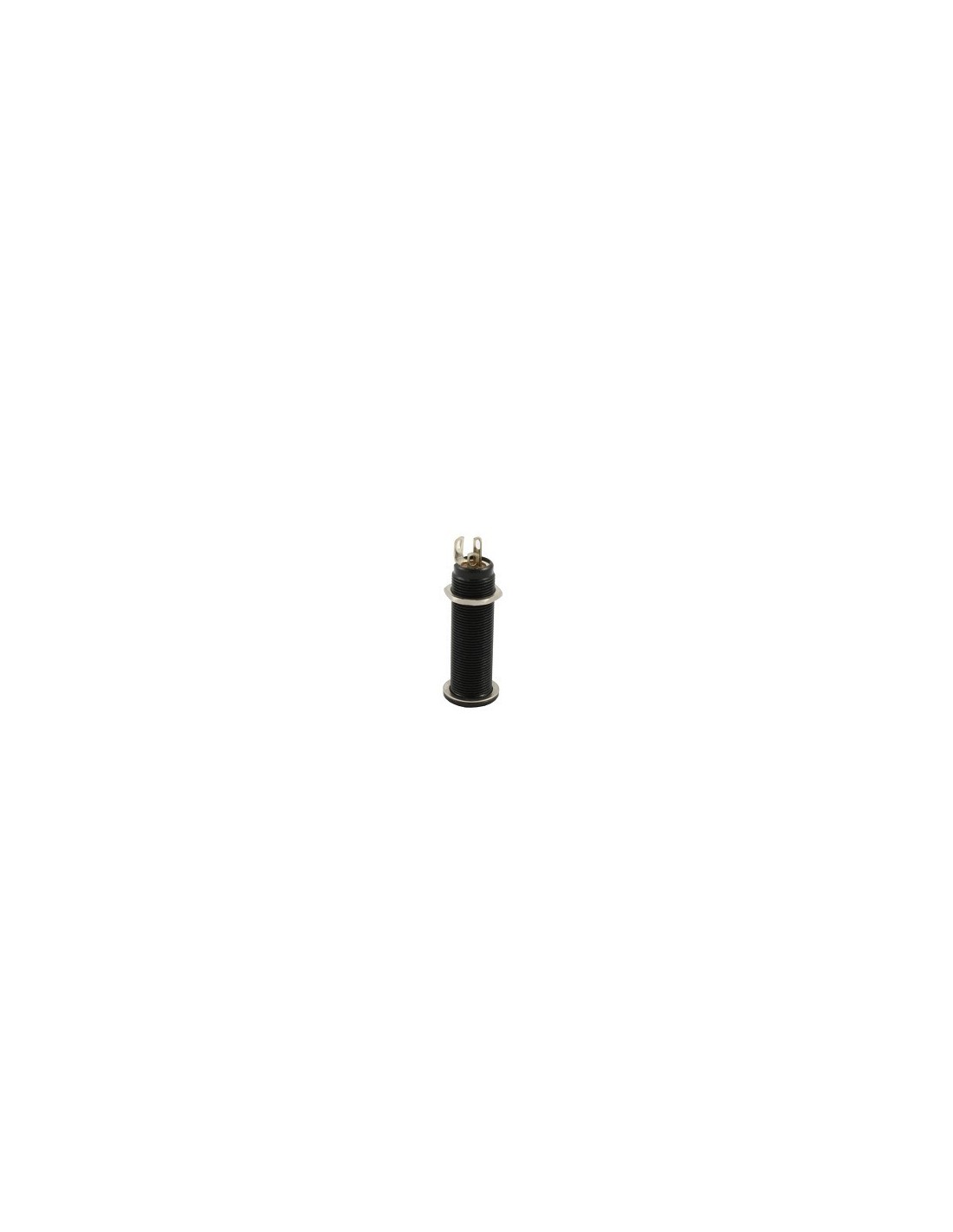

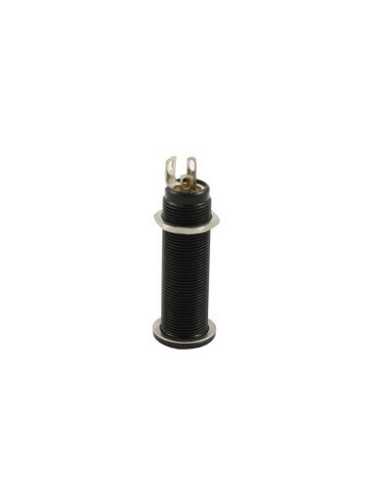

Switchcraft Black Stereo Long Threaded Jack



Uus toode

Long Threaded Barrel Input Jack, Stereo, Black, Switchcraft, with Nut and Washer. Accepts 1/4 in. plug, and can be wired mono or stereo. Half inch diameter mounting hole,needed and at least 7/16 inch wood thickness are required for mounting. Overall length 2 inches. Short post is hot, medium post is for battery, and larger outermost post is for ground.

Rohkem infot

Poes saadaval

17,00 €

Rohkem infot

1/4" Stereo Long Threaded Jack  3 Conductor Thick Panel Mount Jack without cable clamp, Black Satin Finish, Nut + Washer. Can be used mono as well

Since decades the original stock part of many US made guitar classics.

made  in USA
mounts: requires 12,7 mm diameter drill
length: 47 mm /  1.85"
