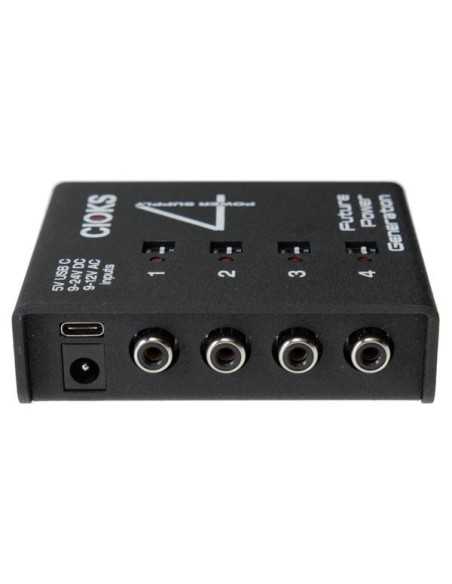

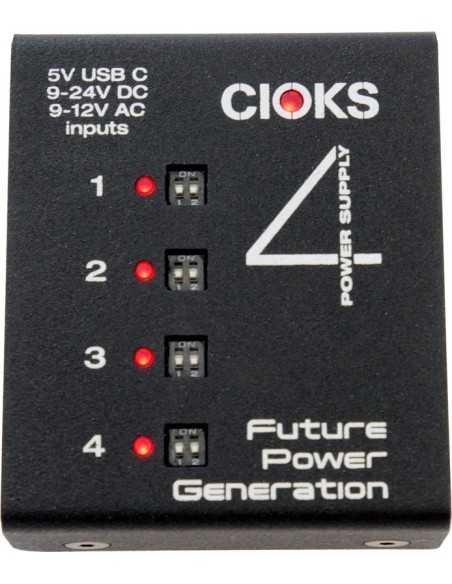

Cioks 4 Expander Kit




CIOKS 4 power supply is the perfect companion to CIOKS DC7 in case you would like four additional outlets with four selectable voltages on each tap (9, 12, 15 and 18V DC) which can each deliver 660mA at 9V DC. Simply connect CIOKS 4 to your CIOKS DC7 via its 24V outlet and you are good to go.

More details

In Stock

139,00 €

Data sheet

Isolated Outputs4

More info

But that is definitely not all – what makes CIOKS 4 truly unique is the fact that you can power it with anything from 9V to 24V DC or 9V to 12V AC via the non-polarized DC socket input. Furthermore, CIOKS 4 can even be powered by connecting it to a USB powerbank via its 5V USB C input or by using a tablet or laptop power supply with a USB C plug. This flexibility means that you can use CIOKS 4 as a stand-alone unit and power it with almost any adapter including the 1-SPOT, GigRig Generator or your iPad charger. You can also use the 24V output on a Strymon Zuma unit to power the CIOKS 4. It can also convert an unused AC outlet on your existing power supply into 4 isolated DC outlets.

• CIOKS 4 has the same groundbreaking 1-inch profile (25,4mm) as CIOKS DC7
• Ultra-low noise achieved by multistage filtering
• 4 isolated DC-outlets, 6W each
• 660mA at 9V DC on each outlet
• 4 selectable voltages on each outlet
• 5V USB C Input for powering the unit with a powerbank or USB C adapter
• Non-polarized input DC socket which accepts anything from 9-24V DC or 9-12V AC
• Global overload status LED
• Mounting hardware for Pedaltrain included
• Compatible with CIOKS Mini GRIP for drill-free mounting on Pedaltrain boards
• 5 Flex cables included
• 24V link cable included
• Designed in Denmark, assembled in Poland


Input 1: 5V DC (USB C socket)
Input 2: 9-24V DC or 9-12V AC (non-polarized 5,5/2,1mm DC socket)
Outlet 1-4: 9V DC / 660mA or
12V DC / 500mA or
15V DC / 400mA or
18V DC / 330mA each

Flex cables included:

• A cable to connect Cioks 4 to a Cioks DC7
• 2x 1030 – Type 1 - 5,5/2,1mm DC-plug, centre negative, L-shape, 30cm (black)
• 2x 1050 – Type 1 - 5,5/2,1mm DC-plug, centre negative, L-shape, 50cm (black)
• 1 x 1533 – 3-way daisy chain Flex type 1, 30+30+50cm (black)
