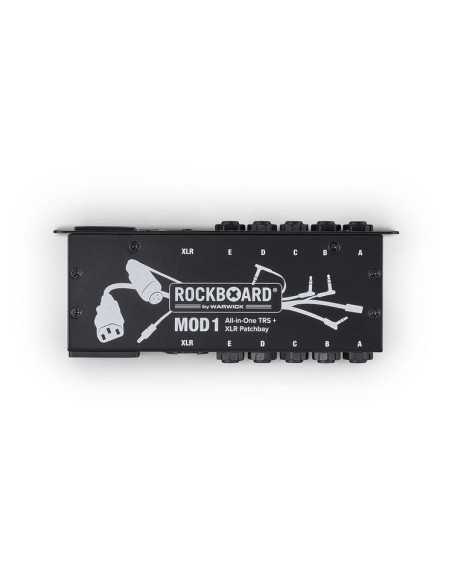

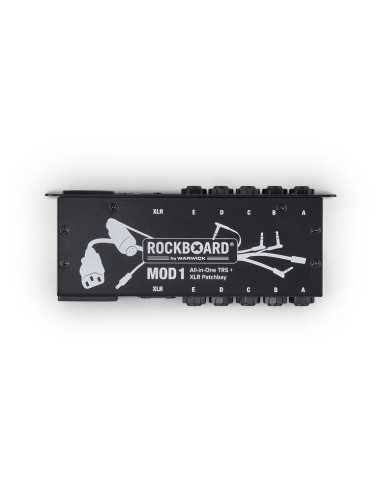

Rockboard MOD 1 V2 Patchbay
RBO B MOD 1 V2
New
With the RockBoard® MODs you can permanently connect your pedals underneath your board and organize all connections to and from your effects setup in one convenient module. The RockBoard® MODs provide a central access point from your instrument to your amp, as well as your power supply via IEC, and a 2.1 x 5.5 barrel thru power connector. The RockBoard® MOD 1 V2 is a pass-thru box especially designed for guitar and bass players.
Delivery time 2-3 weeks
More info
- all-in-one patchbay for pedalboards

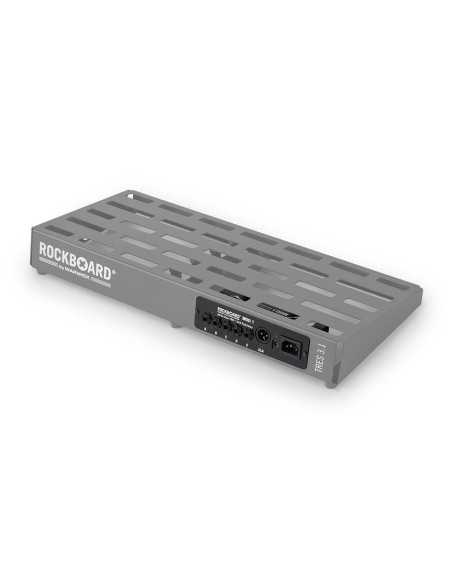

- fits MOD slots in RockBoard pedalboards
- compatible with a wide variety of other pedalboards
- acts as central access point to your effects setup
- establishes clean cable paths to and from the pedal board

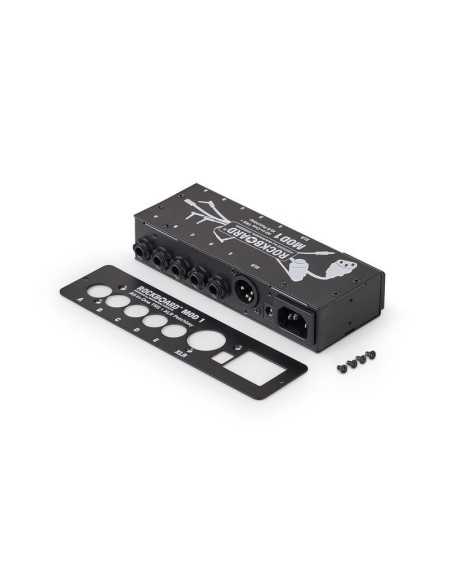

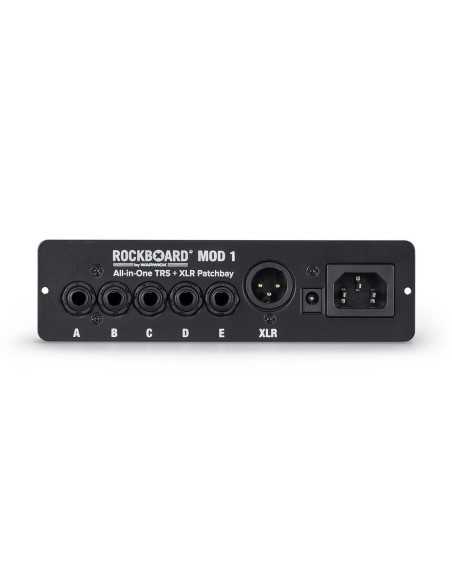

- detachable front plate for mounting on top or underneath pedalboards
- 5 x 6,3 mm / ¼" TRS thru
- 1 x XLR thru (male front / female back)
- 1 x DC 2,1 x 5,5 mm barrel thru
- 1 x AC IEC thru (male front / female back)

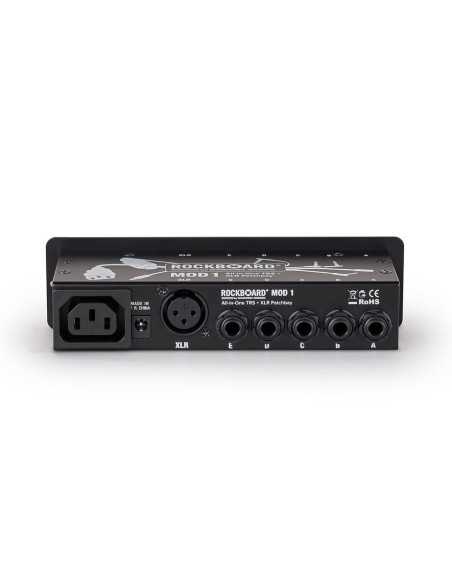

- all connections mirrored on backside
- dimensions with front plate (W x D x H) 175 x 85 x 47 mm / 6 7/8" x 3 3/8" x 3 15/16"
- dimensions without front plate (W x D x H) 160 x 85 x 33 mm / 6 5/16" x 3 3/8" x 1 5/16"
- weight 450 g / 0.99 lbs
- incl. mounting screws, counter nuts and TX wrench
