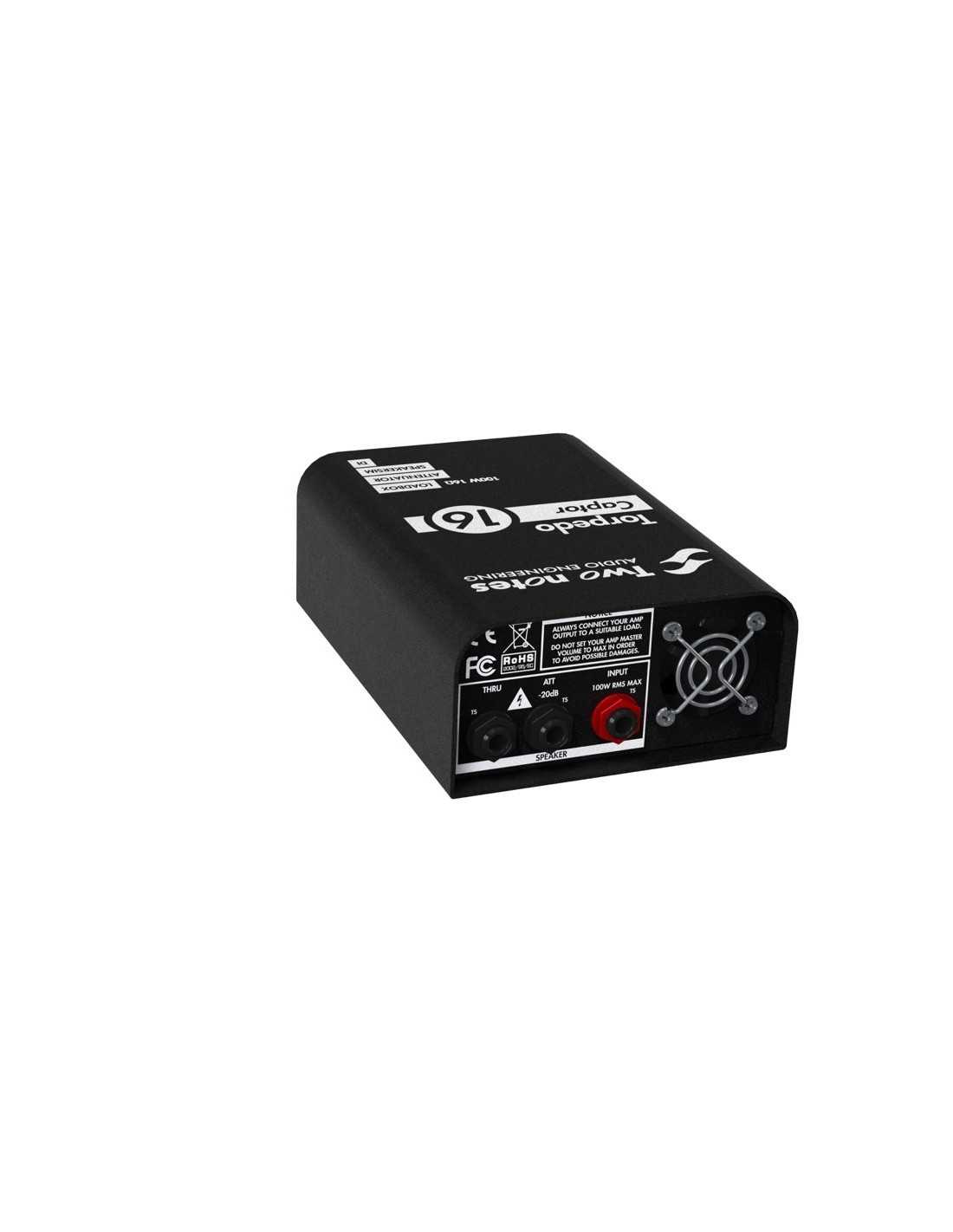

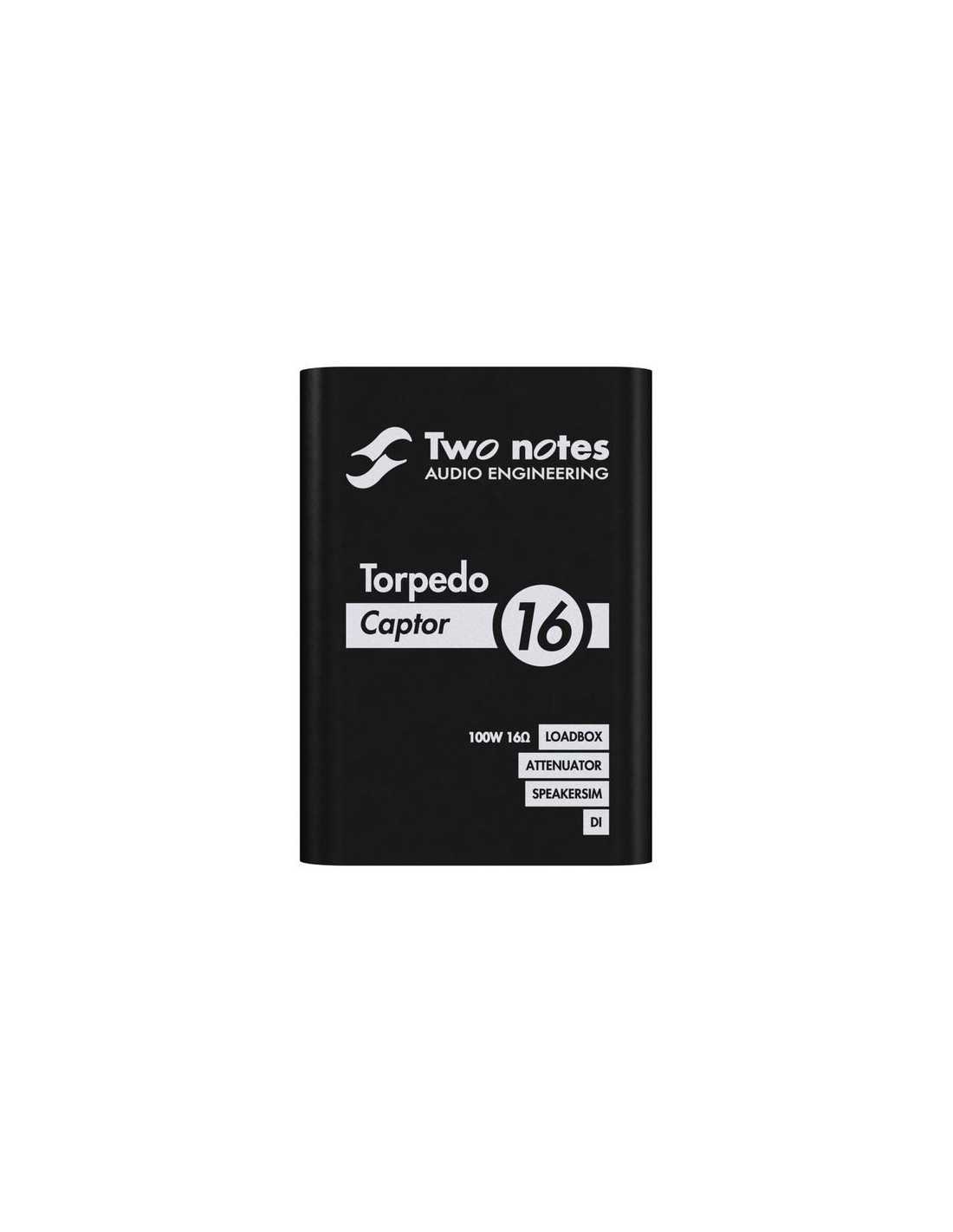

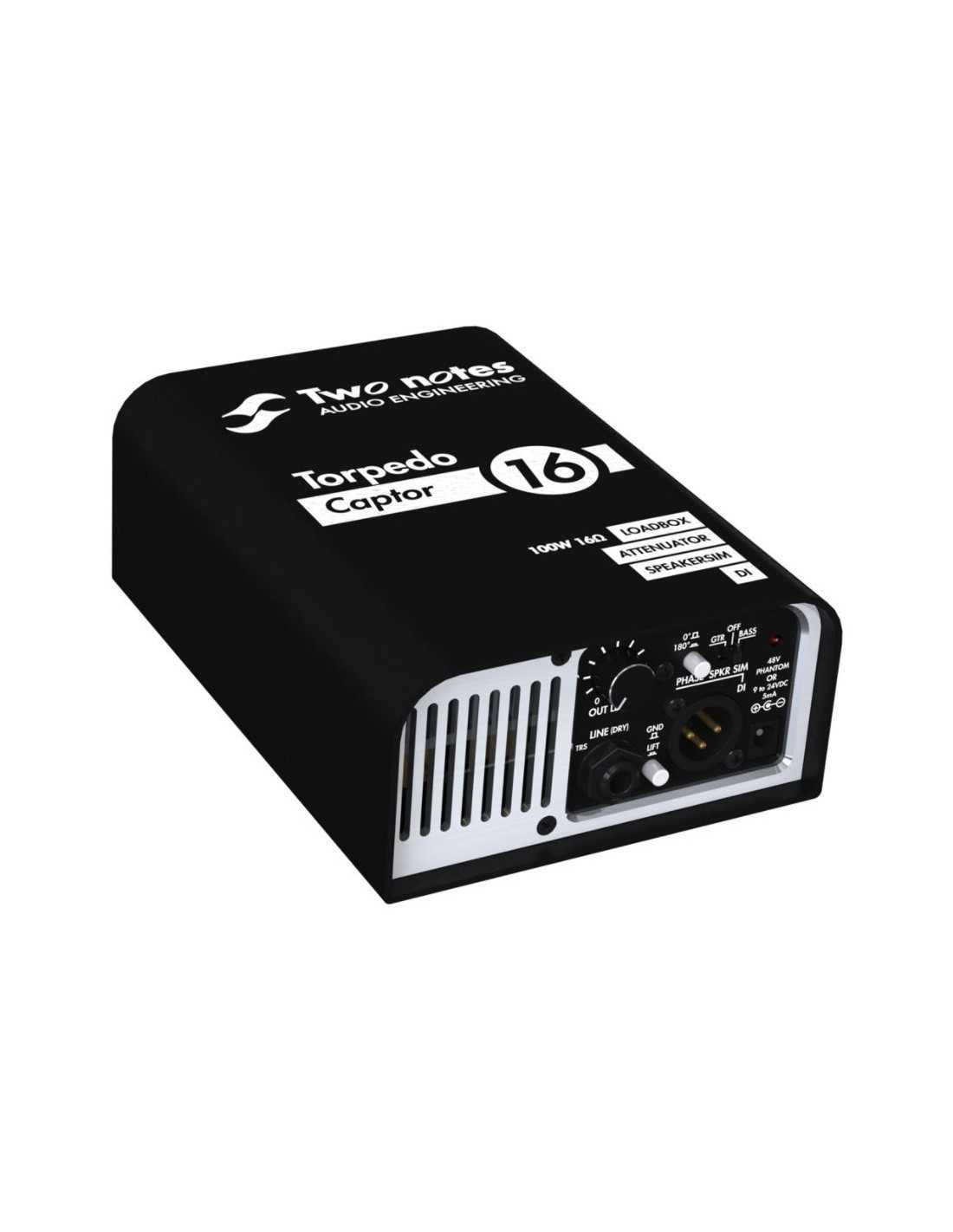

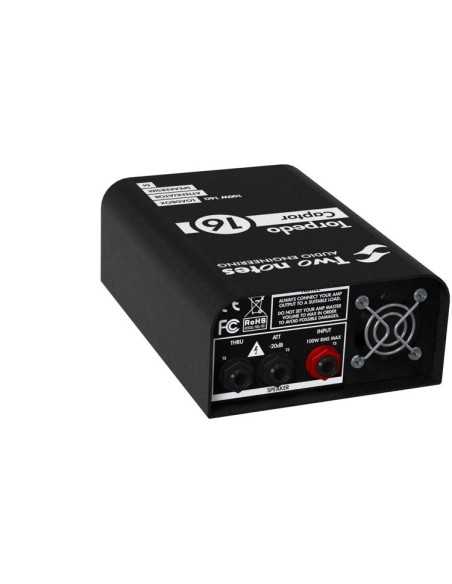

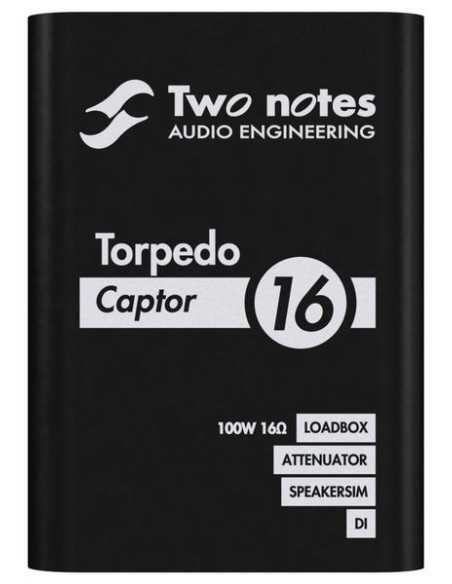

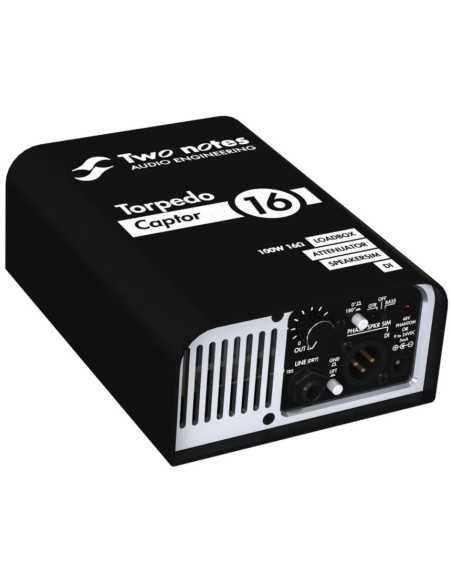

Two Notes Torpedo Captor 16 Ohms
TN-CAPTOR16
New
Captor is a Loadbox, speaker simulator and WoS, perfect for unleashing your favorite tube amp in a variety of modern applications and venues. If you just require attenuation from your amp to your cab, Captor has you covered. And if you want an easy and modern way to record your tube amp, Captor is simply “load” and record.
In Stock
More info
Reactive loadbox
Input impedance: 4, 8 or 16 Ohms
Admissible power: 100W RMS
Cooled by fan, thermal security: the amp and musician work in security.
Input / Output
Speaker Input: 1/4″ Jack unbalanced (TS, Tip/Sleeve)
Speaker Att: 1/4″ Jack unbalanced (TS) – Attenuation: -20dB.
Speaker Thru: 1/4″ Jack unbalanced (TS) – Directly connected to Speaker Input. Disconnects the loadbox when used.
Line Output: 1/4″ Jack balanced (TRS) – Impedance: approx 1 kOhms – Without speaker simulation
DI Output: XLR balanced – Impedance: 600 Ohms – With or without speaker simulation
Speaker sim
Guitar or Bass, analog, based on acclaimed Torpedo virtual cabinets
Power
Power is required only for the XLR DI output and speaker simulation.
Phantom power or DC jack, 2.1×5.5mm, negative center.
Current : 5mA
Dimensions & weight
175 x 126 x 62 mm
1 kg
